Chicken Food Storage Containers
$2,400.00
Chicken Food Storage Containers The key function is transfer the food in the silo to the hopper and the material particle sensor will control the motor to open
描述
Chicken Food Storage Containers

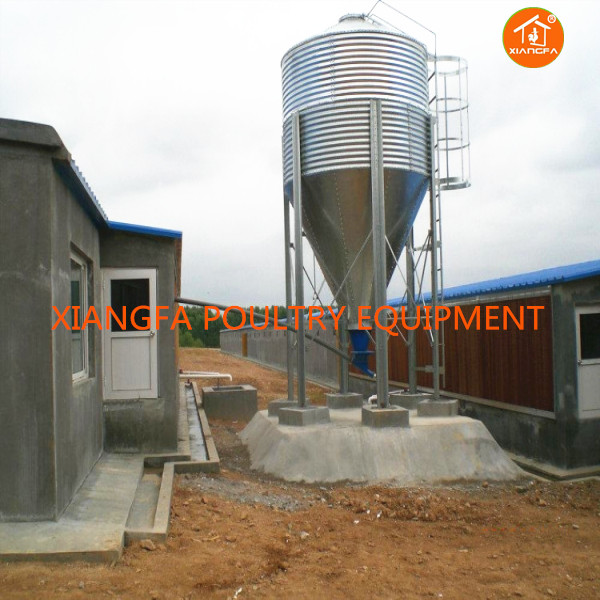

The chicken food storage container is the main part of feeding line
Its also called the name chicken food Silo.The key function is transfer the food in the silo to the hopper and the material particle sensor will control the motor to open or close the whole system so that it can transfer the food automatically.
product features of chicken food storage containers:
1. High strength: vertical reinforcement ribs on the inner wall of the cylinder, transverse spiral undercut ribs, greatly enhance the strength of the cylinder, strong resistance to wind, earthquake and snow.
2. Good sealing: the barrel connection is made of spiral undercut, the thickness of the undercut is five times the thickness of the cylinder, and the sealing performance is good, which is convenient for fumigation and insecticide.
3. Short construction period: The construction period is short, which can be quickly put into use and create benefits for users.
4. Beautiful appearance: the shape of the top of the warehouse is tapered, it is not easy to accumulate dust and water, and the warehouse line is smooth
5. Long service life: the cylinder is made of hot-dip galvanized coil, and the top of the silo is treated by galvanizing process, which has strong anti-corrosion and long service life.

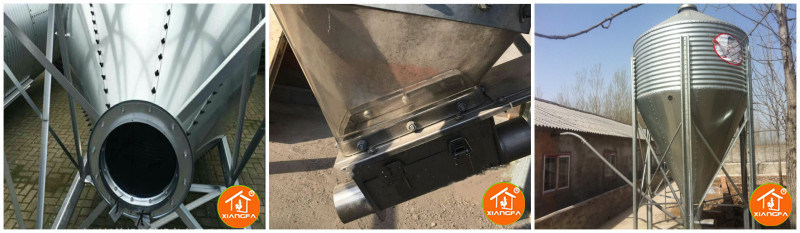

Detail pictures of chicken food storage containers showing:
There is more equipment management about broiler breeding
Broiler drinking line system(Cage free system)
Broiler chicken cages 72 birds
Rearing Chicken Cages 192 birds
Broiler Rearing Cages 96 birds
Specification of chicken food storage containers as following
|
Model
|
Diameter CM
|
Hight M
|
Tier
|
capacity T
|
Volume M3
|
Stents No.
|
|---|---|---|---|---|---|---|
|
XF18301
|
183
|
3.7
|
1
|
3.5
|
5.38
|
4
|
|
XF18302
|
183
|
4.8
|
2
|
5.4
|
7.69
|
4
|
|
XF18303
|
183
|
5.9
|
3
|
7.5
|
10.96
|
6
|
|
XF27501
|
275
|
4.75
|
1
|
8.8
|
13.52
|
6
|
|
XF27502
|
275
|
5.9
|
2
|
13.7
|
20.17
|
6
|
|
XF27503
|
275
|
7.0
|
3
|
18.2
|
26.82
|
6
|
|
XF36701
|
367
|
6.1
|
1
|
18.5
|
27.17
|
8
|
|
XF36702
|
367
|
7.2
|
2
|
26.5
|
38.99
|
8
|
|
XF36703
|
367
|
8.3
|
3
|
34.6
|
50.82
|
8
|
|
Note:
|
Silo models: T/M3 =0.6
|
|||||
Provide services of chicken food storage containers:
Our company can provide customers with various specifications of steel silo design, and provide equipment services related to the project;
such as lifting, conveying, cleaning, ventilation, dust removal, automatic control systems and other ancillary equipment
