Broiler Breeding Equipment Automatic introduction

►Automatic feeding system of Broiler Breeding Equipment:

Chicken feeding line is mainly used in feeding of commerical chicken, the automatic feeding system included below two parts:
1)Main Feeding Line System:
The key function is transfer the food in the silo to the hopper, and the material particle sensor will
control the motor to open or close the whole system, so that it can transfer the food automatically.

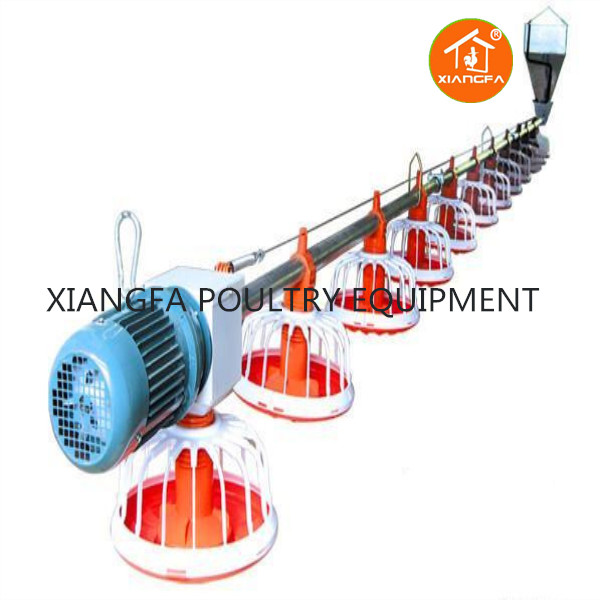

2)Minor Feeding Line System:
Its key function is transfer the food in the hopper to every tray, and the material particle sensor will
control the motor to open or close the whole system, so that it can transfer the food automatically.

Main Feeding Line System and Minor Feeding Line System

►Main Feeding Line System of Broiler Breeding Equipment

• Motor :0.75 Kw,Voltage: 380 V,Rate: 50 Hz Three-phase AC
• Feeding Pipe—Diameter: φ 75 X 3.0 mm  Materials: PVC
• The Spiral Spring Coil Dragon 73/227,Outside Diameter: φ60.5 mm, Inside Diameter: φ36.5 mm,Screw Pitch: φ60 mm
• Pump Capacity: 1400 Kg/h

►Minor Feeding Line System of Broiler Breeding Equipment

• Motor :0.75 Kw ,Voltage: 380 V Rate: 50 Hz,Three-phase AC
• Silo Volume: 115 L
• Materials: galvanized plate, thickness: 1.2 mm
• Hopper Volume: 38 L
• Feeding Pipe—(4 holes, distance: 750 mm)
• Diameter: φ45 mm; Length: 3000 mm
• Materials: galvanized steel pipe (Zinc: 250 g/㎡); Thickness: 1.2 mm
• The Spiral Spring Coil Dragon 20/060—
• Outside Diameter: φ36 mm
• Inside Diameter: φ20 mm
• Screw Pitch: φ39.5 mm
• Pump Capacity: 450 Kg/h

►Feeding Tray of Broiler Breeding Equipment:

• Diameter: φ330 mm; Tray Side Height: 46 mm; Materials: PP
• Chicken Cell Quantity: 14
• Feeding Quantity: 40-55 birds/tray

►Control Board of Broiler Breeding Equipment:

• Diameter: φ330 mm; Tray Side Height: 46 mm; Materials: PP
• Material Particle Sensor: Time Range: 0-2 h

►Hanging System of Broiler Breeding Equipment:

• Winch Maximum Lifting Weight: 3500 lb
• Hanging Lift Distance between Points: 3 m

---
