Automatic feeding system for poultry farm

►Broiler feeding system for group:

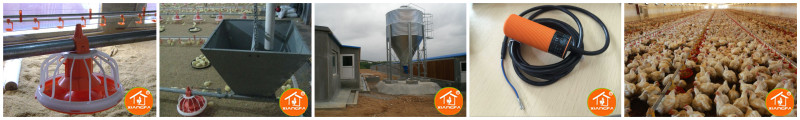

Chicken feeding line is mainly used in feeding of commerical chicken, the automatic feeding system included below two parts:
1)Main Feeding Line System:
The key function is transfer the food in the silo to the hopper, and the material particle sensor will
control the motor to open or close the whole system, so that it can transfer the food automatically.
2)Minor Feeding Line System:
Its key function is transfer the food in the hopper to every tray, and the material particle sensor will
control the motor to open or close the whole system, so that it can transfer the food automatically.

Description of Broiler feeding system

►Main Feeding Line System

• Motor :0.75Kw,Voltage: 380V,Rate: 50Hz Three-phase AC
• Feeding Pipe—Diameter: φ75X3.0mm  Materials: PVC
• The Spiral Spring Coil Dragon 73/227,Outside Diameter: φ60.5mm, Inside Diameter: φ36.5mm,Screw Pitch: φ60mm
• Pump Capacity: 1400Kg/h

►Minor Feeding Line System

• Motor:0.75Kw ,Voltage: 380V Rate: 50Hz,Three-phase AC
• Silo Volume: 115L
• Materials: galvanized plate, thickness: 1.2mm
• Hopper Volume: 38L
• Feeding Pipe—(4holes, distance: 750mm)
• Diameter: φ45mm; Length: 3000mm
• Materials: galvanized steel pipe (Zinc: 250g/m2); Thickness: 1.2mm
• The Spiral Spring Coil Dragon 20/060—
• Outside Diameter: φ36mm
• Inside Diameter: φ20mm
• Screw Pitch: φ39.5mm
• Pump Capacity: 450Kg/h

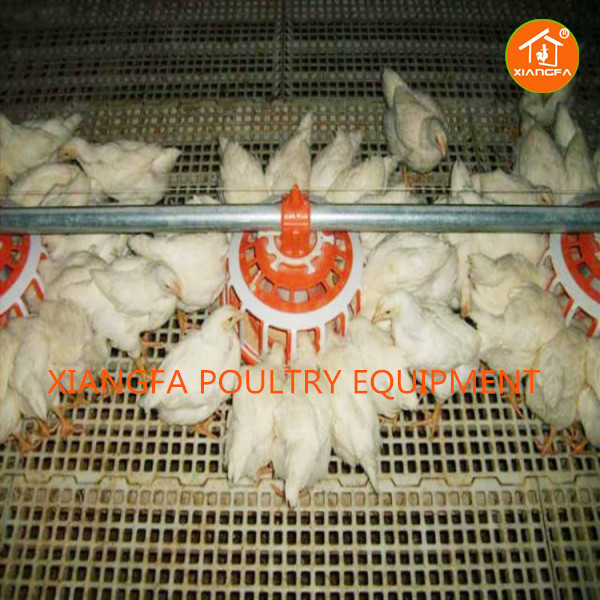

►Feeding Tray of broiler feeding line:

• Diameter: φ330mm; Tray Side Height: 46mm; Materials: PP
• Chicken Cell Quantity: 14
• Feeding Quantity: 40-55birds/tray

►Control Board of broiler feeding system:

• Diameter: φ330mm; Tray Side Height: 46mm; Materials: PP
• Material Particle Sensor: Time Range: 0-2h

►Hanging System of Broiler feeding system:

• Winch Maximum Lifting Weight: 3500lb
• Hanging Lift Distance between Points: 3m

---
